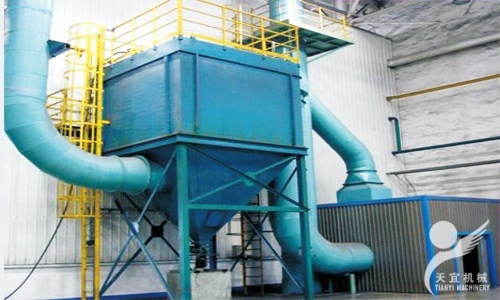

DMC Single Pulse Dust Collector

Product details

Industrial dust collector refers to the separation operation of multi-phase mixture of gas and dust particles in industrial production, which is called industrial dust removal. The operation process of dust removal is to separate dust particles from gas. In industrial production, the solid material in processing, transportation, storage and packaging production process, the production equipment of dust produced in the process of operation with the spread of dust float in the sky, these will affect the service life of the environmental safety equipment and operating personnel's health, in large, medium and small factories, all that related to dust process must have dust proof design.

Our company produces cyclone dust collector, DMCC bin pressure relief (roof) pulse dust collector, HMC single pulse dust collector, PPCS plenum pulse cloth bag dust collector, LCDM long bag low pressure pulse dust collector.

Item		Model
Item		DMC24	DMC36	DMC48	DMC60	DMC72	DMC84	DMC96	DMC108	DMC120
Air volume passing(m3 /h)		870~3240	1300~4880	1730~6500	2170~8130	2600~9750	3040~11400	3470~13000	3900~14630	4340~16270
Filtration rate(M/min)		0.8~3	0.8~3	0.8~3	0.8~3	0.8~3	0.8~3	0.8~3	0.8~3	0.8~3
Filtering area(m2 )		18	27.1	36.1	45.2	54.2	63.3	72.3	81.3	90.4
Filter bag spec.(mm)		Ø120×2000	Ø120×2000	Ø120×2000	Ø120×2000	Ø120×2000	Ø120×2000	Ø120×2000	Ø120×2000	Ø120×2000
No. of filter bag		24	36	48	60	72	84	96	108	120
Equipment resistance(Pa)		980~1200	980~1200	980~1200	980~1200	980~1200	980~1200	980~1200	980~1200	980~1200
Collection efficiency(%)		99~99.9	99~99.9	99~99.9	99~99.9	99~99.9	99~99.9	99~99.9	99~99.9	99~99.9
Inlet dust concentration(g/m3 )		＜15	＜15	＜15	＜15	＜15	＜15	＜15	＜15	＜15
No. of pulse valve(S)		4	6	8	10	12	14	16	18	20
pulse cycle(S)		0.1~0.2	0.1~0.2	0.1~0.2	0.1~0.2	0.1~0.2	0.1~0.2	0.1~0.2	0.1~0.2	0.1~0.2
Injection pressure(MPa)		0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Compressed air consumption((m3 /mi n)		0.084~0.168	0.162~0.252	0.168~0.336	0.21~0.42	0.252~0.504	0.294~0.588	0.336~0.672	0.378~0.756	0.42~0.84
Working temperature(℃)		＜120	＜120	＜120	＜120	＜120	＜120	＜120	＜120	＜120
Mass (kg)		1027	1210	1410	1760	2110	2470	2820	3170	3525
Dimenssio n	Length/ mm	1030	1390	1750	2110	2470	2830	3190	3550	3910
	Width/ mm	1520	1520	1520	1520	1520	1520	1520	1520	1520
	Height/ mm	4400	4400	4400	4400	4400	4400	4400	4400	4400
