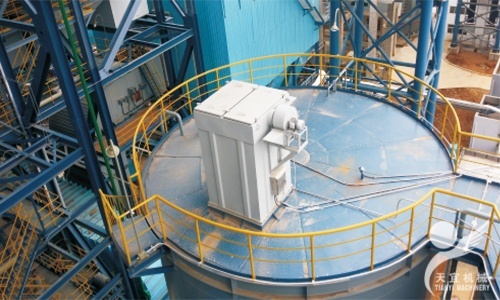

HMC Single Pulse Dust Collector

Product details

Industrial dust collector refers to the separation operation of multi-phase mixture of gas and dust particles in industrial production, which is called industrial dust removal. The operation process of dust removal is to separate dust particles from gas. In industrial production, the solid material in processing, transportation, storage and packaging production process, the production equipment of dust produced in the process of operation with the spread of dust float in the sky, these will affect the service life of the environmental safety equipment and operating personnel's health, in large, medium and small factories, all that related to dust process must have dust proof design.

Our company produces cyclone dust collector, DMCC bin pressure relief (roof) pulse dust collector, HMC single pulse dust collector, PPCS plenum pulse cloth bag dust collector, LCDM long bag low pressure pulse dust collector.

Item		Model
Item		HMC	HMC	HMC	HMC	HMC	HMC
Air volume passing(m3 /h)		1500~2100	2100~3200	2900~4300	4000~6000	5200~7000	6000~9000
Filtration rate(M/min)		1.00~1.50	1.00~1.50	1.00~1.50	1.10~1.70	1.10~1.70	1.10~1.70
FIltering area(m2 )		24	36	48	60	72	84
Filter bag spec.(mm)		ø120×2000	ø120×2000	ø120×2000	ø120×2000	ø120×2000	ø120×2000
No. of filter bag		32	48	64	80	96	112
Equipment resistance(Pa)		980~1200	980~1200	980~1200	980~1200	980~1200	980~1200
Collection efficiency(%)		99~99.9	99~99.9	99~99.9	99~99.9	99~99.9	99~99.9
Inlet dust concentration(g/m3 )		＜200	＜200	＜200	＜200	＜200	＜200
Outlet dust concentration(mg/m3 )		＜30	＜30	＜30	＜30	＜30	＜30
No. of pulse valve(S)		4	6	8	10	12	14
Injection pressure(MPa)		0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Compressed air consumption((m3 /min)		0.1	0.14	0.2	0.24	0.29	0.34
Under negative pressure(Pa)		5000	5000	5000	5000	5000	5000
Working temperature(℃)		＜120	＜120	＜120	＜120	＜120	＜120
Blower	Model	4-68No3.15	4-72No3.6A	4-72No3.6A	4-72No4A	4-72No4A	4-72No4.5A
	Motor type	YS90-2	Y100-2	Y100-2	Y132S₁-2	Y132S₁-2	Y132S₁-2
	Motor function	1.5	3	3	5.5	5.5	7.5
Mass (kg)	A type	1350	1620	1850	2360	2800	3220
Mass (kg)	B type	1220	1470	1670	2150	2540	2880
