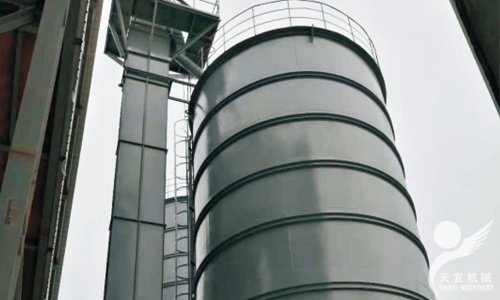

TH Series Bucket Elevator

We are a Conveying Equipment manufacturer in China With rich experience in TH Series Bucket Elevator, with Competitive price and top quality.

TH series bucket elevator its traction chain isthe ring chain, with large breaking load, good wear resistance and long service life.

CONTACT

Product details

Product parameters

Product details

TH series bucket elevator its traction chain isthe ring chain, with large breaking load, good wear resistance and long service life. For mixed or gravity discharge, pick and take loading, suitable for conveying powder,granular and small abrasive materials with packing density ≤ 1.5t/m³ , and the temperature of the materials shall not exceed 250℃.

Model		TH200		TH250		TH315		TH400		TH500		TH630		TH800		TH1000
Bucket type		Zh	Sh	Zh	Sh	Zh	Sh	Zh	Sh	Zh	Sh	Zh	Sh	Zh	Sh	Zh	Sh
Capacity	m³/h	17	30	21	38	35	60	60	94	75	118	114	185	146	235	235	365
Bucket	Width（mm）	200		250		315		400		500		630		800		1000
	Volume（L）	2.0	3.6	2.49	4.5	3.75	6	5.9	9.5	9.3	15	14.6	23.6	23.3	37	37	58
	Spacing (mm)	512								688				920
Chain	Round Steel Diameter × circular pitch( mm)	18×64								22×86				26×92
	Numbers of Chain ring	7												9
	Numbers	2
	Single broken load（KN）	≥320								≥480				≥570
Diameter of sprocket pitch circle (mm)		550				630		710		800		900		1000		1250
Bucket running speed （m/s）		1.4								1.5				1.6
Driving shaft speed (r/min)						42.5		37.6		35.8		31.8		30.5		24.4
