TDG Series Steel Core Belt Bucket Elevator

Product details

1、TDG series ordinary steel core belt bucket type elevator

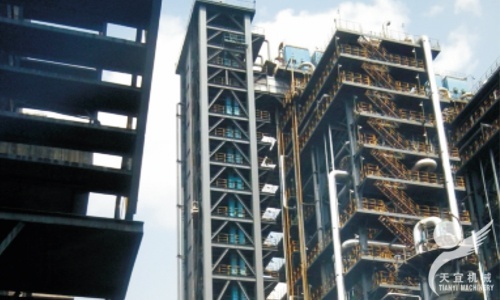

High efficiency bucket elevator using wire rope core tape as traction component. Today, TDG series steel core belt bucket elevator produced by Tianyi machinery can achieve a lifting height of more than 100m and a conveying capacity of more than 1200m3/h. Steel core belt bucket elevator is suitable for dry powder material or material vertical lifting, widely used in building materials,metallurgy, chemical industry, food,electric power and other industries bulk material lifting system, is the ideal replacement of foreign products with the same specifications.

2、TDGF series air-tight and explosion-proof steel core belt bucket elevator

TDGF series airtight explosion-proof type steel core belt bucket elevator is a special equipment indpendently developed and designed by Tianyi machinery on the basis of ordinary steel core belt bucket elevator , have airtight ,explosion-proof , real- time monitoring, high efficiency features, often used in raw coal, petroleum coke, carbocoal,calcium carbide furnace and other combustible dust and contain a large amount of flammable and explosive gas material conveying, It is a patented product of our company, now the biggest transport production height of 110 m.

Model		TDG160		TDG200		TDG250		TDG315		TDG400		TDG500		TDG630		TDG800		TDG1000		TDG1250		TDG1600
		sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh
Capacity (m³/h)		32	24	45	31	75	51	101	74	158	118	220	167	348	253	492	361	788	571	1.22	816	1541	1112
Bucket	Volume (L)	2.6	1.9	4.1	2.9	6.5	4.6	10	7.4	16	12	25	19	40	29	64	47	102	74	161	117	255	184
	Spacing (mm)	260		300		325		360		420		460		520		580		650		720		820
Weight of drag tap and bucket per meter(kg/m)		22		21.5		33		33.2		42.2		62.3		78.53		106		145		155.5		223
Bucket running speed（m/s）		1.2		1.2		1.34		1.34		1.5		1.5		1.68		1.65		1.86		1.86		1.836
Lifting height		80		80		80		80		80		80		80		80		80		80		80
