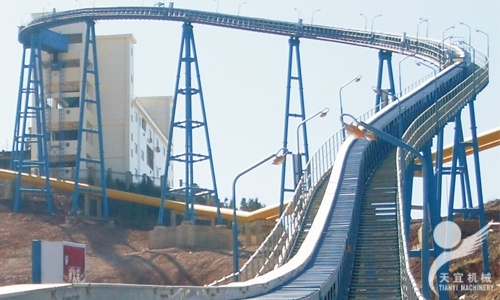

The technology of Tianyi's Pipe belt conveyor adhering to the German technology philosophy, on the basis of summarizing the Japanese pipe belt conveyor, set design,manufacturing experience for many years. Our company in the digestion of its main technical and design concept, combined with China's national conditions, on the structural design,formed our own characteristics as the following aspects:

Pipe Roller Frame And Layout

Each roller frame of pipe section adopt convenient adjusting structure, compact, easy to adjust; Connected to the roller adopts bolt, compared with the general belt roller cassette connection, secure connection, reduce the noise produced by the vibration.

Decorate roller adopts 3/3 methods, on both sides of the partition layout 3 group rollers,between adjacent supporting roller have lap length, and required partition on both sides of the adjacent rollers come near, as far as possible to ensure that the tape will not damage the tape insert.

Pipe Rack Steel Structure

Follow Germany and many foreign manufacturers pipe belt conveyor manufacturing standards, our company's demand for the frame steel structure partition is higher, all has the strict request to its flatness, are all steel sheet forming technology, so as to meet the requirements of frame steel structure as a whole.

Steel Structure Of Head And Tail Transition Section

Our company's head and tail transition section truss are arranged extend to head and tail roller frame, and then arranged dust color plate around the frame, so that the whole pipe belt conveyor are in a closed, with only one inlet and a outlet, truly protect environment.

Bridge Wiring

Along the pipe belt conveyor, the basic layout needs is stretch switch, also need to layout lighting, as well as the special cases need power cables. Our company mainly to let the cable line take bridge frame as appendage, are placed above the frame of the pipe belt conveyor,then cover the color plate on the frame for rain, not just beautiful, compact prevent it at the same time line weathered and rapid aging.
